K9(BK7) colorless optical glass

Home · Products · Optical Filters · Colorless optical glass · K9(BK7) colorless optical glass
Colorless optical glass

K9(BK7) colorless optical glass

K9(BK7) has excellent mechanical properties and very low bubble K9(b270) product drawing and impurities, with good scratch resistance. Because of its stable chemical properties, no special treatment grinding and polishing. It is applied in many fields such as photoelectron, microwave technology, diffraction optical element and so on.

  • K9(BK7) colorless optical glass

Product Parameters

Properties Note

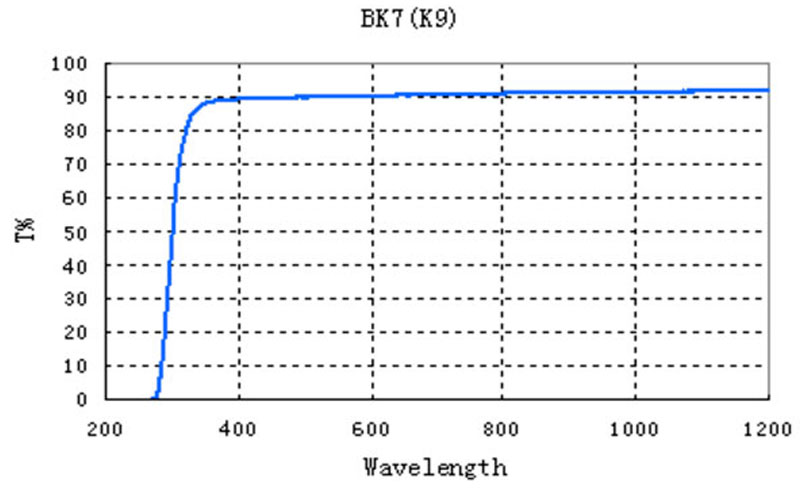

Transmission range 0.4μm to 2.5μm
Density 2.51 g/cc
Thermal expansion 7.1×10 - 6/°F @ - 30° + 70°C, & 8.3×10 - 6/°F @ 20°C to 300°C
Surface finish bk - 7 polishes extremely well & polishes of 10 - 5, or 20 - 10 scratch - dig are achieved at extra costs respectively, mainly for uv & visible applications.
Curvature diagram surface figure of 1/10 wave to 1/4 wave @ 0.6328μm are specified mostly on lenses for ultraviolet & visible use.
Coating ar @ 0.8 - 2.5μm, ar @ 1.064, ar @ visible wavelength.
Applications Astronomy, thermal imaging
Products manufactured Lenses, prisms, filters, optical filters, etc.



Wavelength Refractive index (n)
0.4047 1.53
0.48 1.523
0.5461 1.519
0.6328 1.515
0.8521 1.51
1.06 1.507
1.53 1.501
1.97 1.495
2.325 1.489
