Golden yellow Cut‑off glass filter

PREV：UV Cut‑off glass filter | NEXT：Orange Cut‑off glass filter

+ Contact us

Product Parameters

1. Features

Number	Thickness(mm)	A[2856k]			D65			Chemical stability		ND	α×10-7 (℃)	Tg(℃)	TS(℃)	S
Number	Thickness(mm)	x	y	Y	x	y	Y	DA	DW	ND	α×10-7 (℃)	Tg(℃)	TS(℃)	S
JB400	2	0.45	0.41	96.3	0.316	0.336	94.2	1	1	1.632	95	497	555	3.65
JB420	2	0.455	0.414	93.1	0.323	0.346	90.8	2	3	1.632	95	497	555	3.69
JB450	2	0.492	0.461	94.7	0.401	0.488	90.7	1	3	1.523	103	527	605	2.64
JB470	2	0.492	0.462	96	0.401	0.49	92	1	3	1.523	103	527	605	2.64
JB490	2	0.502	0.468	94.5	0.422	0.514	89.6	1	3	1.523	103	527	605	2.64
JB510	2	0.519	0.471	91.5	0.456	0.526	84	1	2	1.523	103	527	605	2.64

2. Technical requirements

Number	Thickness(mm)	Atj(nm)	A0(nm)	TAO(%)	K
JB400	2	400±10	560	≥86.0	≥0.6
JB420	2	420±10	560	≥86.0	≥0.6
JB450	2	450±10	560	≥89.5	≥0.6
JB470	2	470±10	560	≥89.5	≥0.8
JB490	2	490±10	580	≥89.5	≥1.2
JB510	2	510±10	600	≥89.5	≥1.2

3. Bubble, fringe and stress levels

Number	Bubble	Stripes	Stress
JB400	C-B	3C	3
JB420	C-B	3C	3
JB450	C-B	3C	3
JB470	C-B	3C	3
JB490	C-B	3C	3
JB510	C-B	3C	3

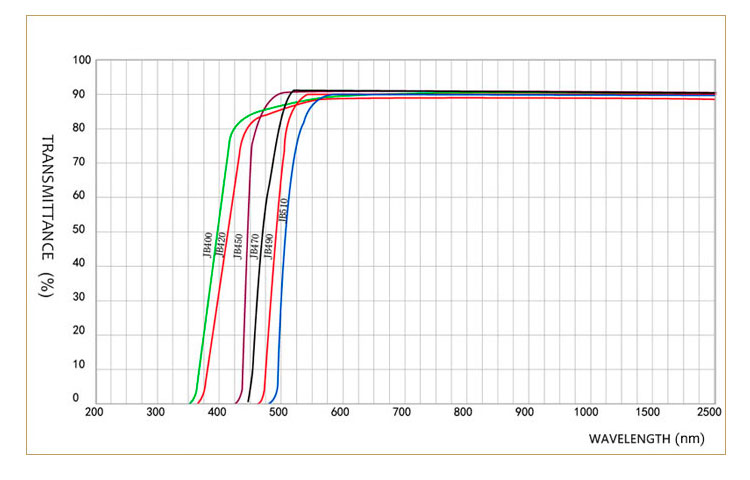

4. The spectra
