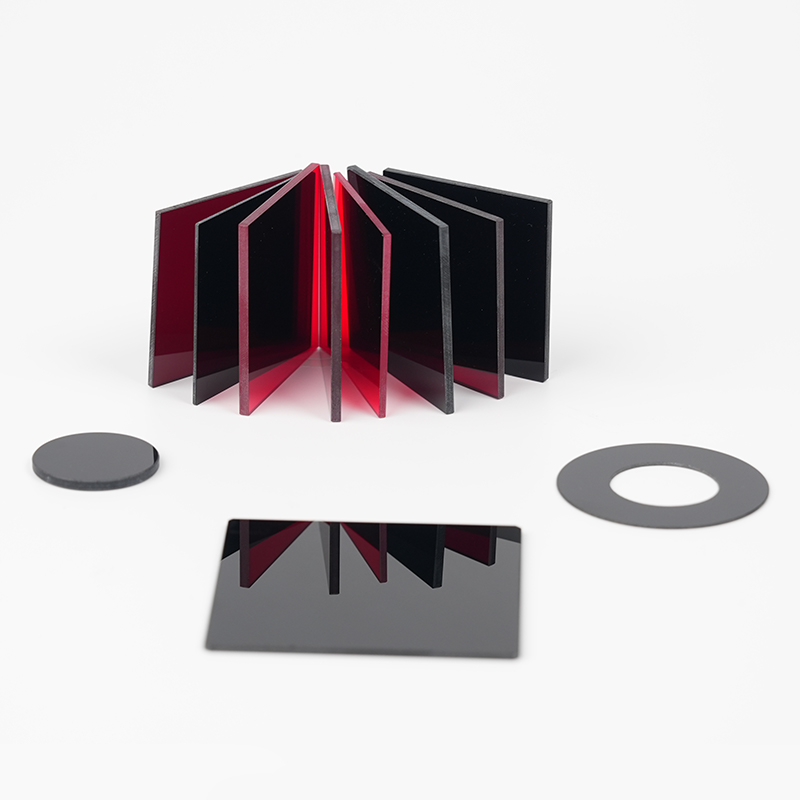

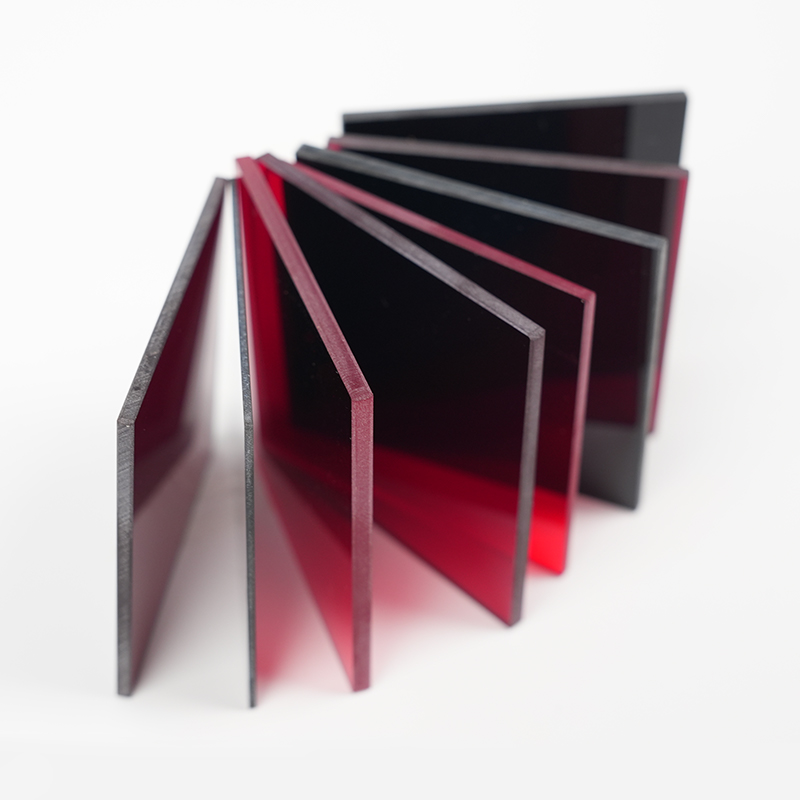

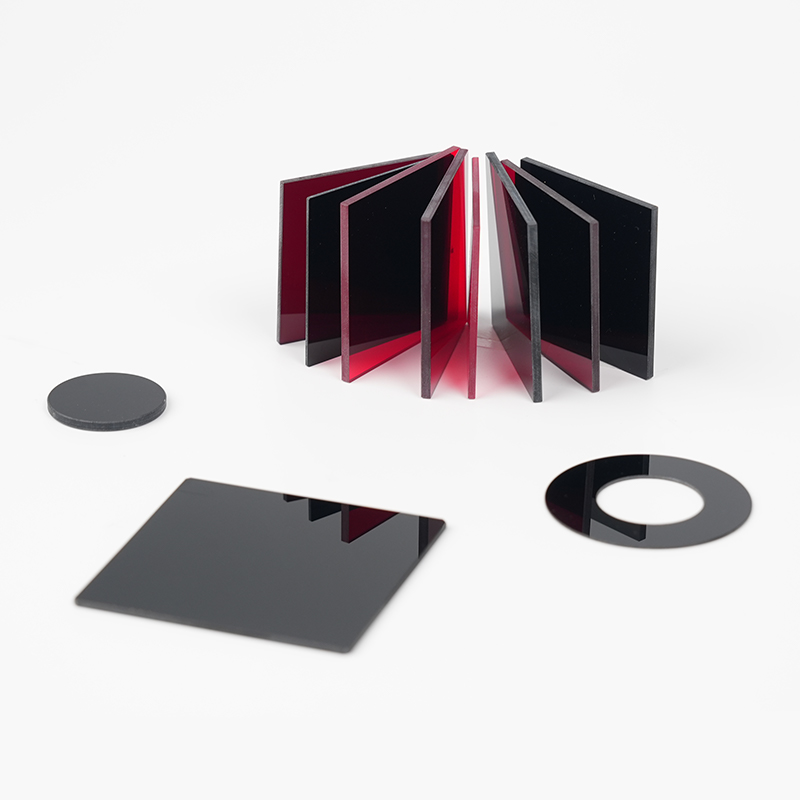

Red Cut‑off glass filter

Red cut-off glass filters are optical filters specifically designed to transmit red and longer wavelength light while effectively blocking shorter wavelength light (such as ultraviolet, blue, and green light). These filters, typically appearing red, are widely used in various fields including image processing, optical experiments, color enhancement, and laser technology, providing highly precise wavelength-selective filtering and optimizing spectral output.

  • Red Cut‑off glass filter
  • Red Cut‑off glass filter
  • Red Cut‑off glass filter
  • Red Cut‑off glass filter
  • Red Cut‑off glass filter
  • Red Cut‑off glass filter
  • Red Cut‑off glass filter
  • Red Cut‑off glass filter
PREV：Orange Cut‑off glass filter   |    NEXT：Infrared transmission can be seen absorbing glass

+ Contact us

Product Parameters

1. Features

Number Thickness(mm) A[2856k] D65 Chemical stability ND α×10-7
(℃)		 Tg(℃) TS(℃) S
x y Y x y Y DA DW
HB600 2 0.68 0.319 27 0.675 0.325 16.5 1 2 1.523 103 527 605 2.64
HB610 2 0.695 0.305 18.4 0.69 0.31 10.7 1 2 1.523 103 527 605 2.64
HB630 2 0.713 0.287 10.4 0.711 0.289 5.5 1 2 1.523 103 527 605 2.64
HB640 2 0.724 0.276 5 0.723 0.277 2.4 1 2 1.523 103 527 605 2.64
HB650 2 0.728 0.272 3.2 0.728 0.272 1.5 1 2 1.523 103 527 605 2.64
HB670 2 0.731 0.269 1.1 0.73 0.27 0.5 1 2 1.523 103 527 605 2.64
HB685 2 0.734 0.266 0.3 0.734 0.266 0.1 1 2 1.523 103 527 605 2.64
HB700 2 0.735 0.265 0 0.735 0.265 0 1 2 1.523 111 534 592 2.64
HB720 2 5 4 1.532 111 534 592 2.77



2. Technical requirements

Number Thickness(mm) Atj(nm) A0(nm) TAO(%) K

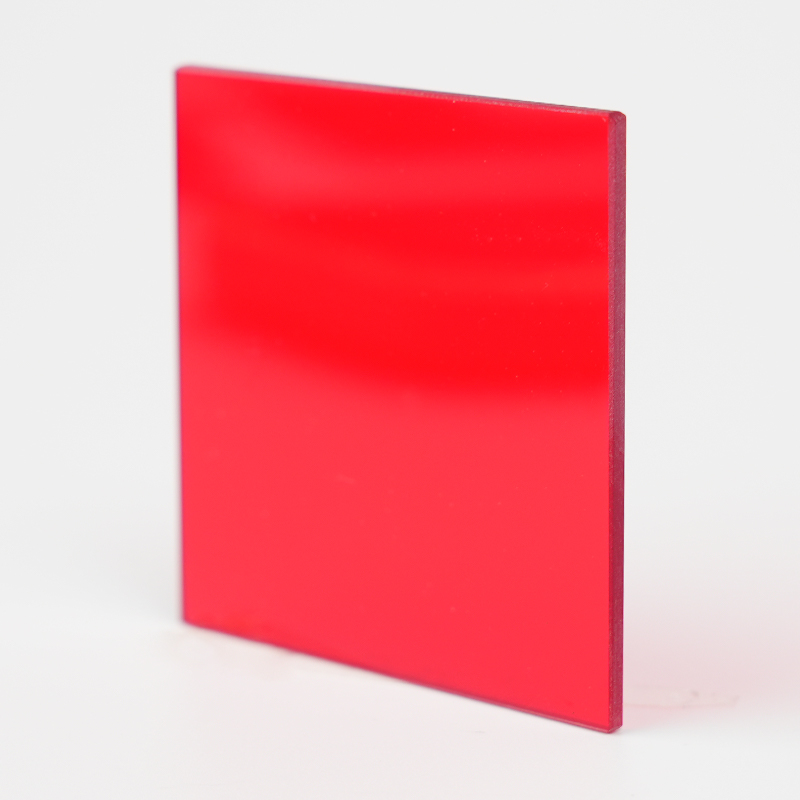

HB600 2 600±10 680 ≥88.7 ≥1.2

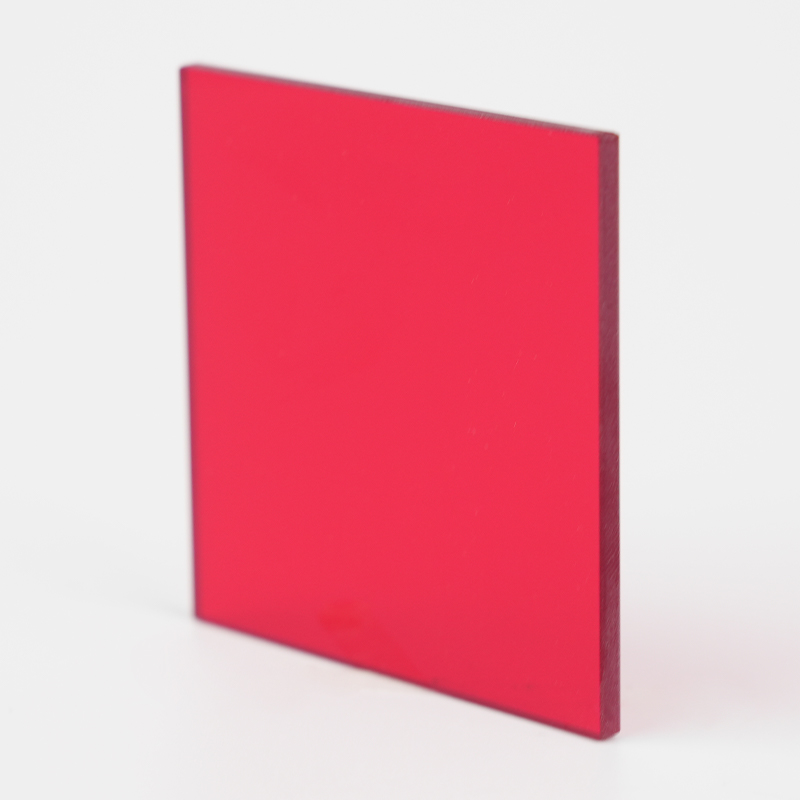

HB610 2 610±10 680 ≥88.7 ≥1.2

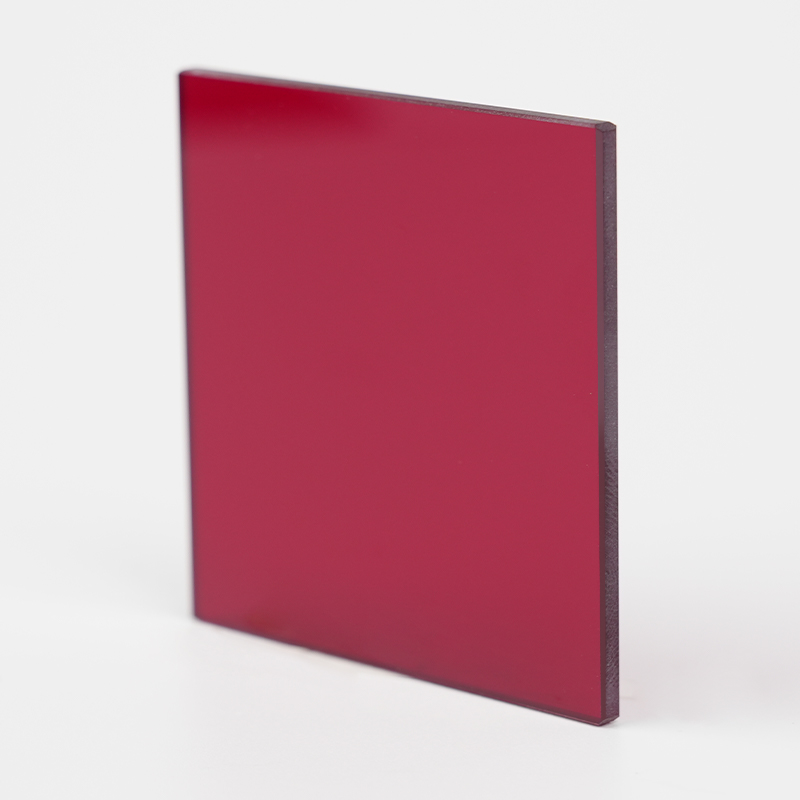

HB630 2 630±10 700 ≥88.7 ≥1.2

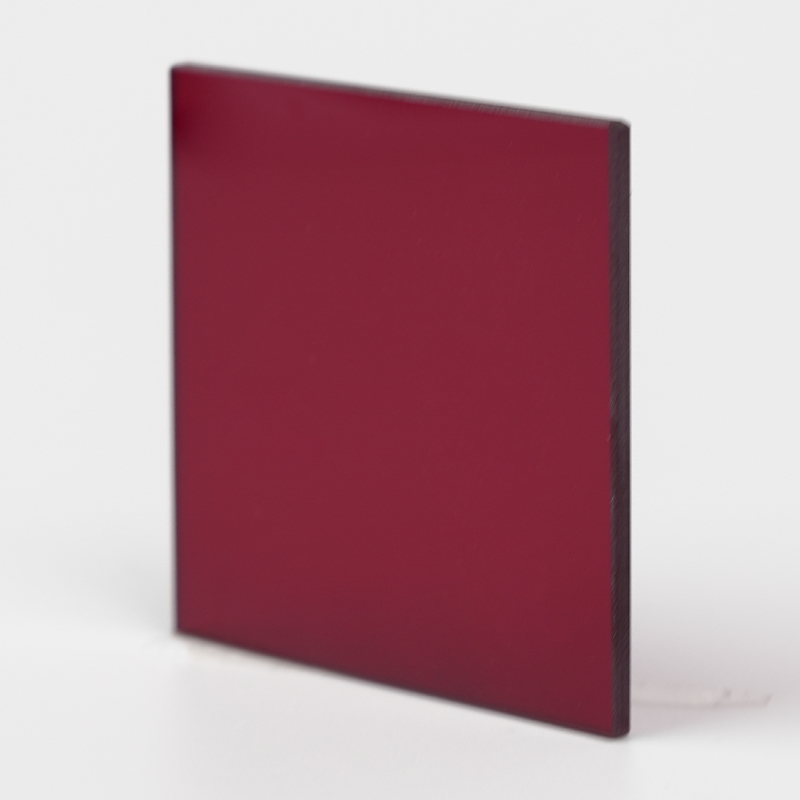

HB640 2 640±10 720 ≥88.7 ≥1.2

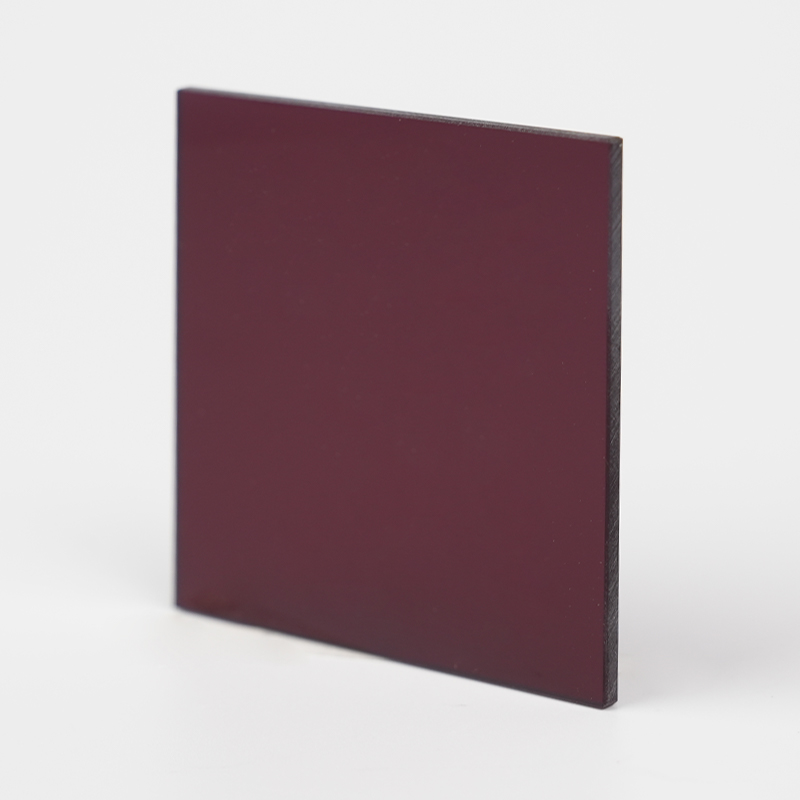

HB650 2 650±10 720 ≥87.5 ≥1.0
HB670 2 670±10 750 ≥87.5 ≥1.0
HB685 2 685±10 800 ≥83.6 ≥0.8
HB700 2 700±10 800 ≥79.8 ≥0.8
HB720 3 720±10 800 ≥80 ≥0.8



3. Bubble, fringe and stress levels

Number Bubble Stripes Stress
HB600 C-B 3C 3
HB610 C-B 3C 3
HB630 C-B 3C 3
HB640 C-B 3C 3
HB650 C-B 3C 3
HB670 C-B 3C 3
HB685 C-B 3C 3
HB700 C-B 3C 3
HB720 C-B 4 3

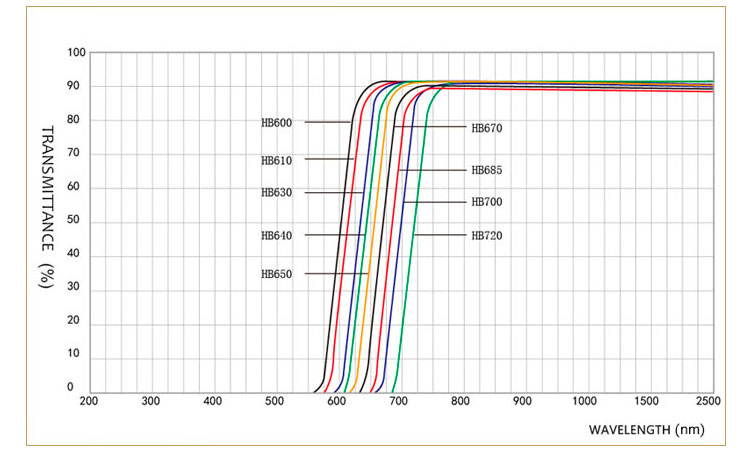

4. The spectra
