Temperature-rising glass is an optical material with special thermal response characteristics, desig...

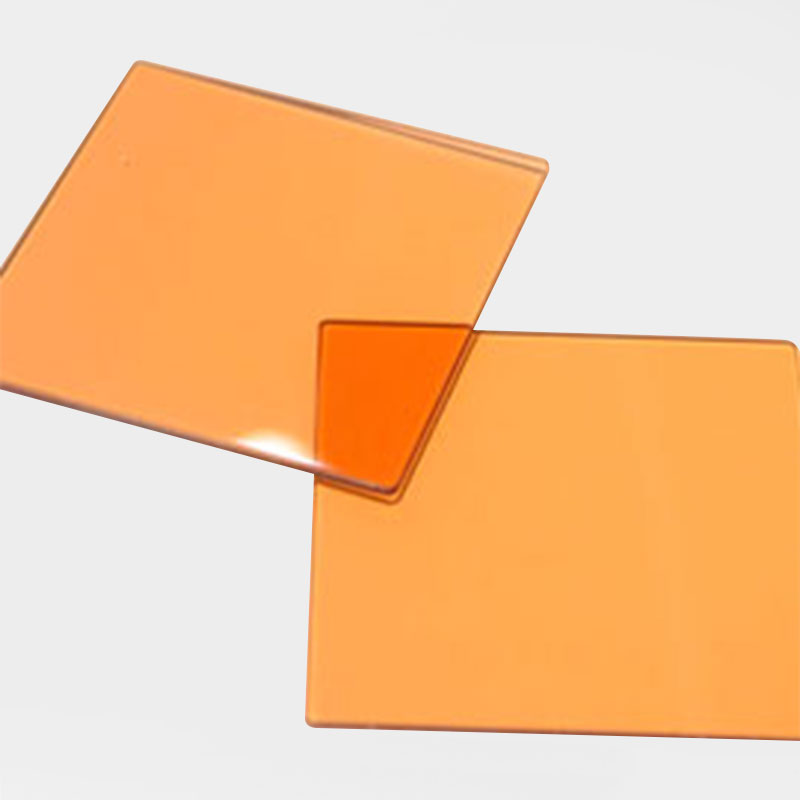

Temperature-reducing glass is an optical material with special thermal regulation properties, designed to reduce and control temperature increases, particularly in high-temperature environments or situations where low temperatures need to be maintained. Unlike temperature-increasing glass, temperature-reducing glass helps lower the impact of light or heat sources by reflecting, absorbing, or insulating against thermal radiation, thus maintaining a lower temperature. This type of glass is widely used in architecture, industry, electronic equipment protection, automotive glass, and solar energy technologies, providing effective thermal management and improved energy efficiency.
1. Features
| Number | Thickness(mm) | A[2856k] | D65 | Chemical stability | ND | α×10-7(/℃) | Tg(℃) | Ts(℃) | S | |||||
| x | y | Y | x | y | Y | DA | DW | |||||||
| SJB20 | 2 | 0.469 | 0.413 | 87.8 | 0.339 | 0.349 | 83.6 | 2 | 3 | 1.525 | 87 | 571 | 642 | 2.63 |
| SJB80 | 2 | 0.494 | 0.415 | 75.3 | 0.372 | 0.368 | 69.2 | 2 | 3 | 1.525 | 87 | 571 | 642 | 2.63 |
| SJB100 | 2 | 0.510 | 0.410 | 67.8 | 0.395 | 0.381 | 61.0 | 2 | 3 | 1.525 | 103 | 513 | 591 | 2.70 |
| SJB130 | 2 | 0.548 | 0.409 | 52.1 | 0.455 | 0.405 | 44.2 | 2 | 3 | 1.525 | 103 | 513 | 591 | 2.70 |
| SJB140 | 2 | 2 | 3 | 1.525 | 103 | 513 | 591 | 2.70 | ||||||
2. Technical Requirements
| Number | Thickness(mm) | V(Mired) | |
| Standard | Tolerance | ||
| SJB20 | 2 | 20 | 20±2 |
| SJB80 | 2 | 80 | 80±8 |
| SJB100 | 2 | 100 | 100±10 |
| SJB130 | 2 | 130 | 130±13 |
| SJB140 | 2 | 140 | 140±14 |
3. Bubble, Streak, and Stress-Related Grades
| Number | Bubble | Stripes | Stress |
| SJB20 | C | 3C | 3 |
| SJB80 | C | 3C | 3 |
| SJB100 | C | 3C | 3 |
| SJB130 | C | 3C | 3 |
| SJB140 | C | 3C | 3 |

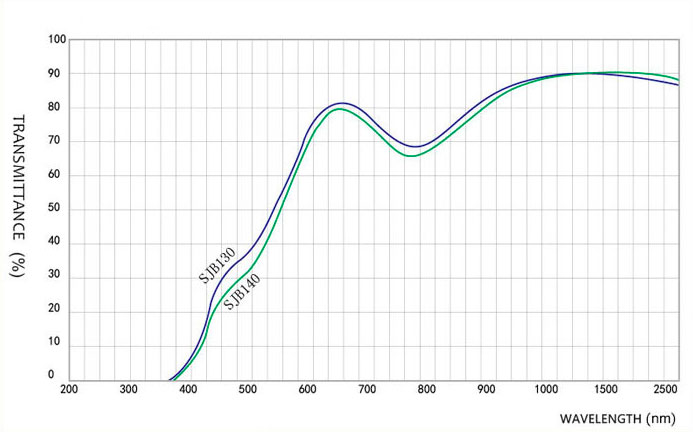

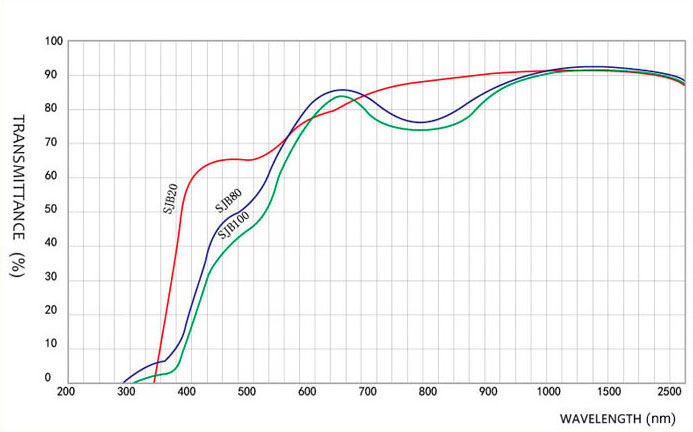

4. Spectrogram
