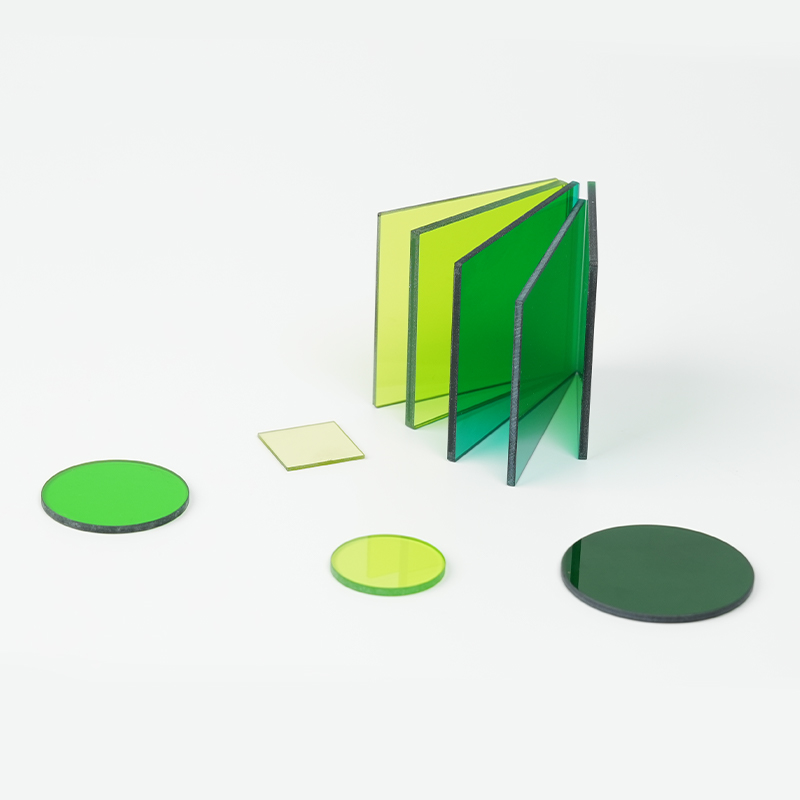

Green glass

Home · Products · Optical Filters · Selective Absorption Glass Filters · Green glass
Products
Selective Absorption Glass Filters

Green glass

  • Green glass
  • Green glass
  • Green glass
  • Green glass
  • Green glass
  • Green glass
  • Green glass
  • Green glass
  • Green glass
  • Green glass
  • Green glass
PREV：Insulating glass   |    NEXT：Cyanine bandpass filter

+ Contact us

Product Parameters

Number Thickness(mm) A[2856k] D65 Chemical stability ND α×10-7(/℃) Tg(℃) Ts(℃) S
x y Y x y Y DA DW
LB1 2 0.328 0.593 24.6 0.268 0.586 28.2 1 3 1.524 96 535 599 2.52
LB2 2 0.25 0.669 9.7 0.216 0.658 11.9 1 2 1.524 96 535 599 2.52
LB3 2 0.252 0.502 23.7 0.196 0.374 29.3 1 1 1.523 98 526 597 2.52
LB4 2 0.23 0.516 16.3 0.183 0.387 20.7 1 1 1.523 89 525 598 2.52



Technical Specifications for Green Glass

Number Thickness(mm) 430(nm) 450(nm) 520(nm) 530(nm) 650(nm) Number Thickness(mm) 430(nm)

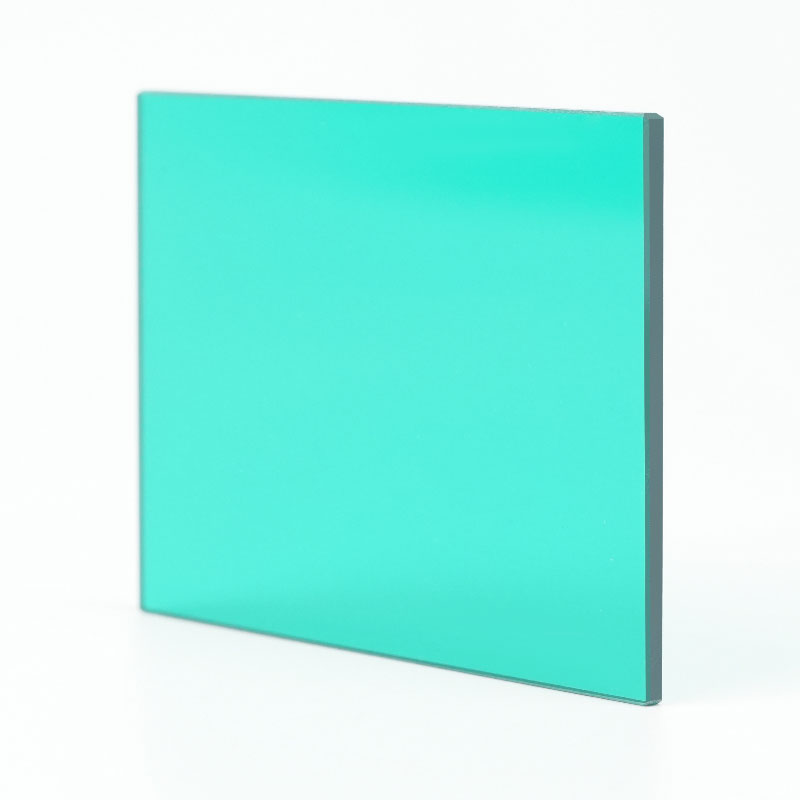

LB1 2 ≤0.4 ≥41.9 ≤3.2 LB1 2 ≤0.4
LB2 2 ≤0.2 ≥18.3 ≤0.2 LB2 2

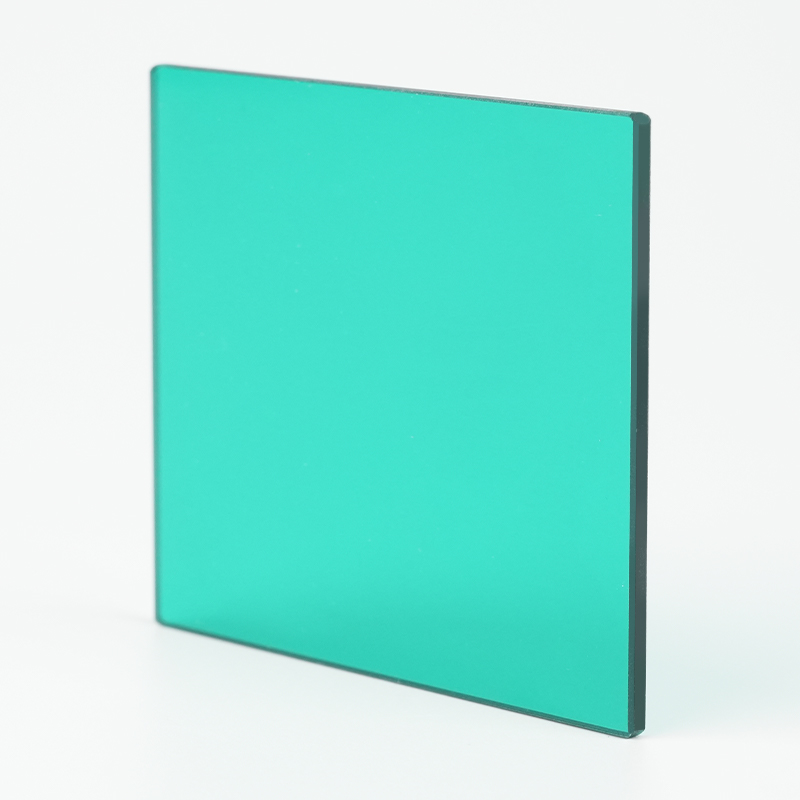

LB3 2 15.2~29.0 ≥40.0 ≤1.7 LB3 2
LB4 2 6.0~15.9 ≥24.1 ≤0.2 LB4 2



Green glass bubbles, streaks, stress marks

Number Bubble Stripes Stress
LB1 C-B 4 3
LB2 C-B 4 3
LB3 C-B 4 3
LB4 C-B 4 3





B. Properties of Green Glass

Number Thickness(mm) A[2856k] D65 Chemical stability ND α×10-7(/℃) Tg(℃) Ts(℃) S
x y Y x y Y DA DW
LB6 2 0.426 0.468 71.9 0.32 0.424 73.6 6 5 1.534 100 421 463 2.83
LB7 2 0.36 0.603 25.6 0.308 0.629 28.4 1 2 1.547 104 458 526 2.85
LB8 2 0.496 0.459 34.9 0.42 0.475 32.3 1 2 1.523 2.52
LB9 2 0.462 0.452 86.7 0.353 0.429 85.2 1 2 1.547 104 458 526 2.85
LB10 2 0.472 0.477 79.2 0.383 0.495 77.6 1 3 1.547 104 458 526 2.85



Technical Specifications for Green Glass

Number Thickness(mm) 400(nm) 420(nm) 460(nm) 480(nm) 550(nm) 560(nm) 620(nm) 650(nm) 660(nm)
LB6 2 41.7~50.1 ≥79.4 25.1~33.1
LB7 2 ≤8.0 545
32.0~45.0		 ≤8.0
LB8 2 ≤1.3 30.3~43.9 640
25.2-40.0

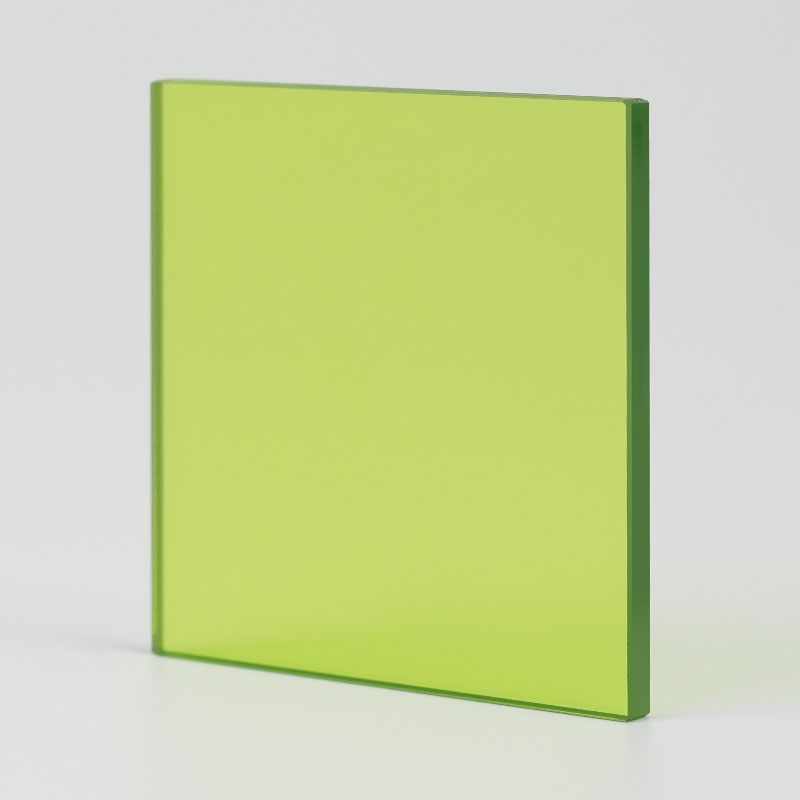

LB9 2 ≤2.0 ≥82.0 65.0~70.0

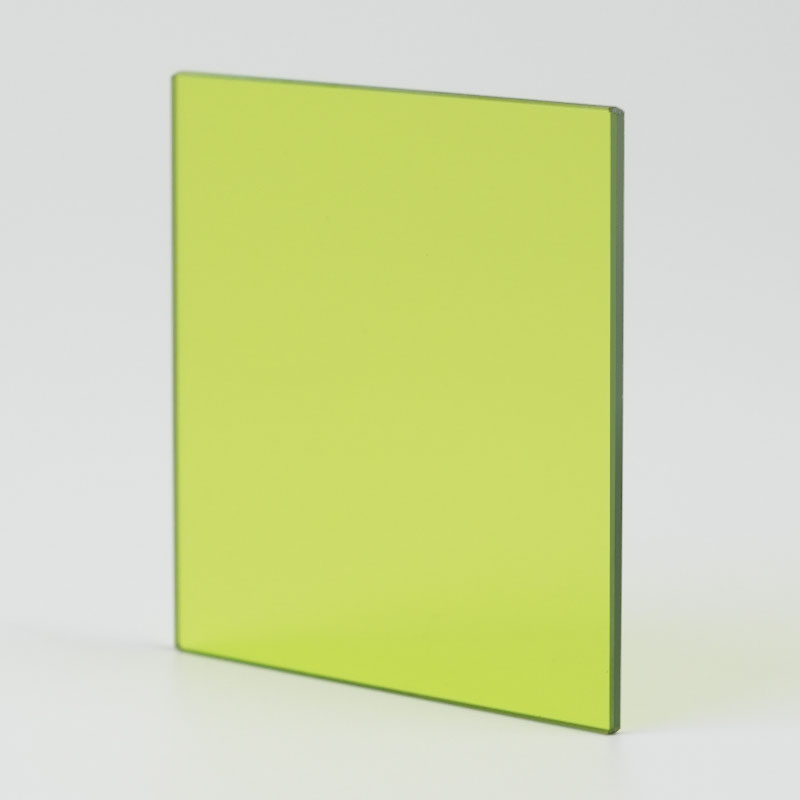

LB10 2 ≤1.0 ≥72.0 50.0~60.0



Green glass bubbles, streaks, stress marks

Number Bubble Stripes Stress
LB6 C 3C 4
LB7 C-B 3C 3
LB8 C-B 3C 3
LB9 C-B 3C 3
LB10 C-B 3C 3



Green Glass Characteristic

Number Thickness(mm) A[2856k] D65 Chemical stability ND α×10-7(/℃) Tg(℃) Ts(℃) S
x y Y x y Y DA DW
LB11 2 0.435 0.528 53 0.364 0.56 54.4 1 2 1.547 104 458 526 2.85
LB12 2 0.463 0.433 87.3 0.342 0.388 84.9 3 4 1.536 95 534 606 2.73
LB13 1 0.352 0.568 15.1 0.284 0.554 16.9 1 3 1.527 98 597 663 2.53
LB14 1 0.369 0.576 8.9 0.307 0.588 9.8 1 3 1.527 98 597 663 2.53
LB15 1 0.351 0.601 2.2 0.299 0.617 2.5 1 3 1.527 98 597 663 2.53



Technical Indexes

Number Thickness(mm) 360(nm) 420(nm) 480(nm) 540(nm) 550(nm) 620(nm) 650(nm) 680(nm)
LB11 2 ≤0.4 ≥65.0 17.0~24

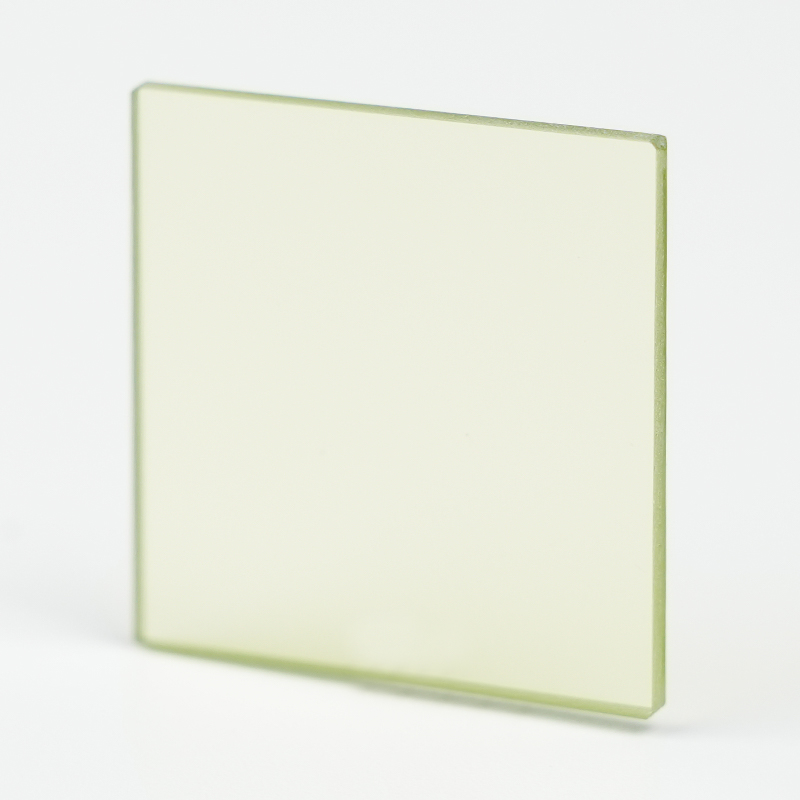

LB12 2 ≤0.8 ≥79.4 ≥72.5
LB13 2 ≤13.8 17.4~30.3 ≤12.6
LB14 2 ≤7.6 7.6~17.4 ≤8.1
LB15 2 ≤3.2 ≥2.0 ≤4.2



Class of Bubble, Stripe, Stress

Number Bubble Stripes Stress
LB11 C-B 3C 3
LB12 C-B 3C 3
LB13 C-B 4 3
LB14 C-B 4 3
LB15 C-B 4 3



Green Glass Characteristic

Number Thickness(mm) A[2856k] D65 Chemical stability ND α×10-7(/℃) Tg(℃) Ts(℃) S
x y Y x y Y DA DW
LB16 2 0.484 0.476 74 0.405 0.483 70.2 6 5 1.535 100 421 463 2.84

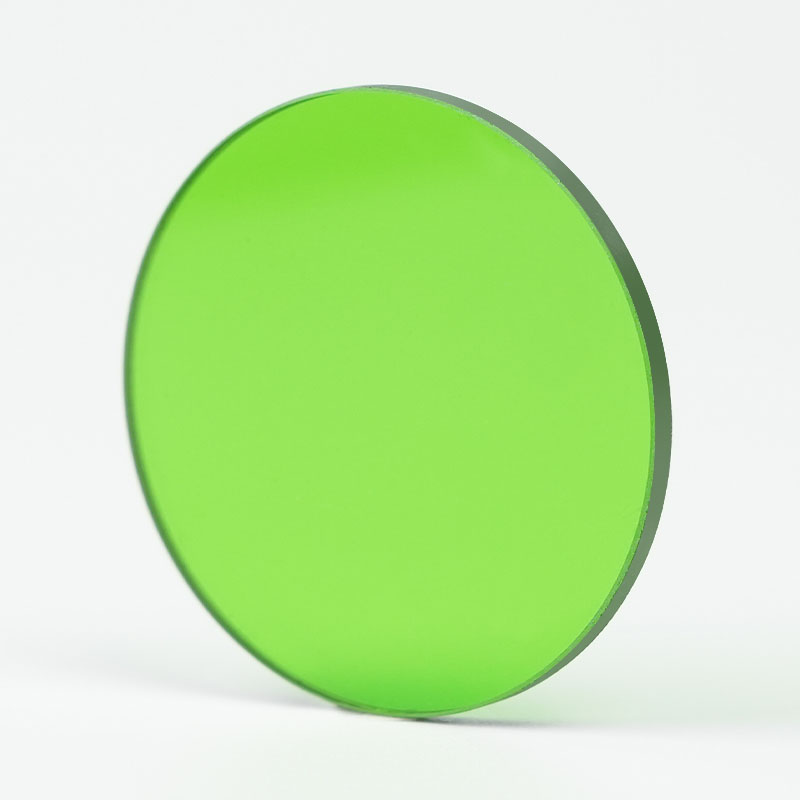

LB17 2 0.434 0.518 56.4 0.356 0.541 58 1 2 1.547 104 458 526 2.85
LB18 2 0.377 0.543 40.9 0.299 0.536 44.8 1 2 1.547 104 458 526 2.85
LB19 2 0.161 0.525 2.7 0.143 0.399 3.7 1 3 1.524 96 535 599 2.52



Technical Indexes

Number Thickness(mm) 450(nm) 460(nm) 510(nm) 520(nm) 530(nm) 560(nm) 600(nm) 660(nm) 750(nm)

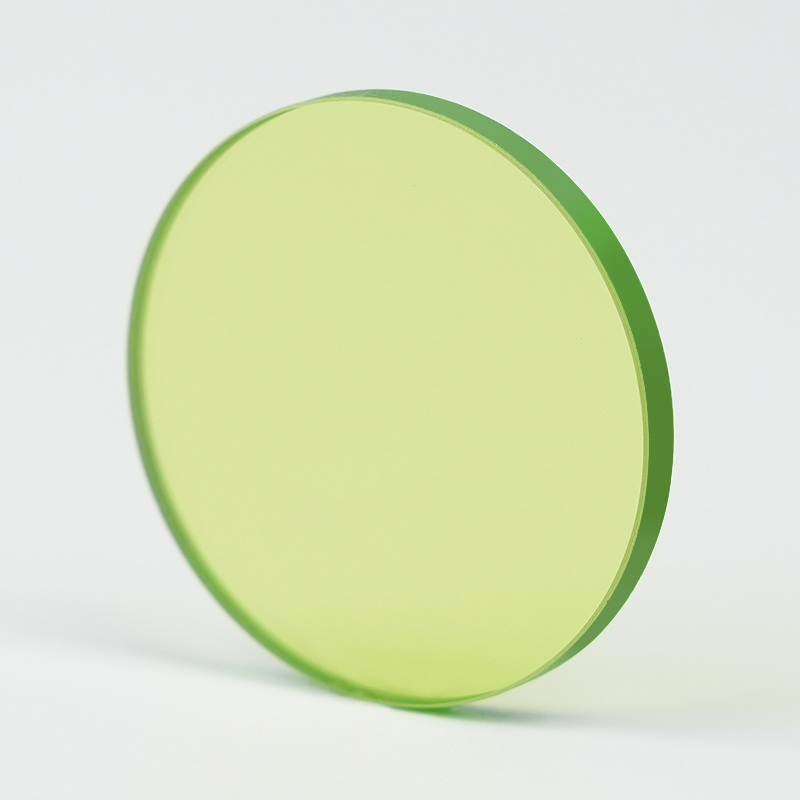

LB16 2 9.0~16.0 ≥83.6 35.0~42.0
LB17 2 ≤1.5 ≥68 ≤46.0 ≤20.1

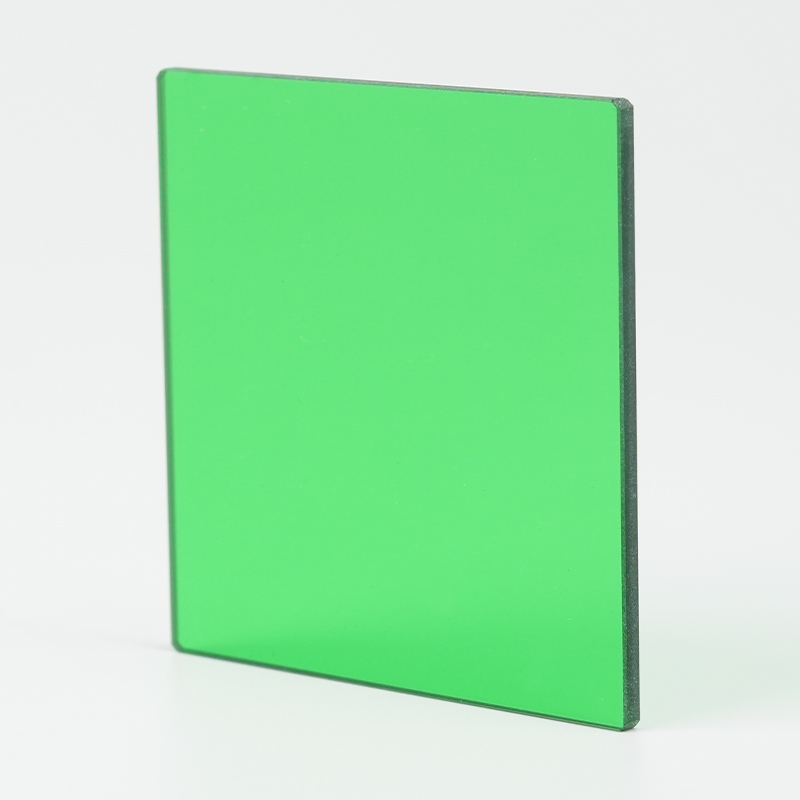

LB18 2 ≤32.8 ≥62.8 ≤18.5 ≤2.1
LB19 2 ≤3.0 6.0~10.0 ≤2.5



Class of Bubble, Stripe, Stress

Number Bubble Stripes Stress
LB16 D-C 3C 4
LB17 C-B 3C 3
LB18 C-B 3C 3
LB19 C-B 4 3
